Optimize the settings on you TaylorMade Driver.



You can do following adjustments on your TaylorMade Driver

Via Hosel Adapter:

  • Loft
  • Lie
  • Face Angle

Via Movable Weight Track: (When possible)

  • Ball Flight (Neutral, Draw, Fade)



Adjustments are made with the Torque Wrench. Use the wrench to loosen the screw in the center of each weight, then slide the weight to the desired location and lock it in place by tightening the screw until you hear an audible “click” noise from the wrench. In order to adjust the Loft Sleeve, loosen the screw in the heel until the clubhead releases from the shaft. Align the desired loft as marked on the sleeve with the line on the back of the hosel and tighten the screw until you hear an audible “click” noise.






Following adjustments are accurate to all Taylormade drivers sold on customclubs website.









Adjust Hosel Adapter

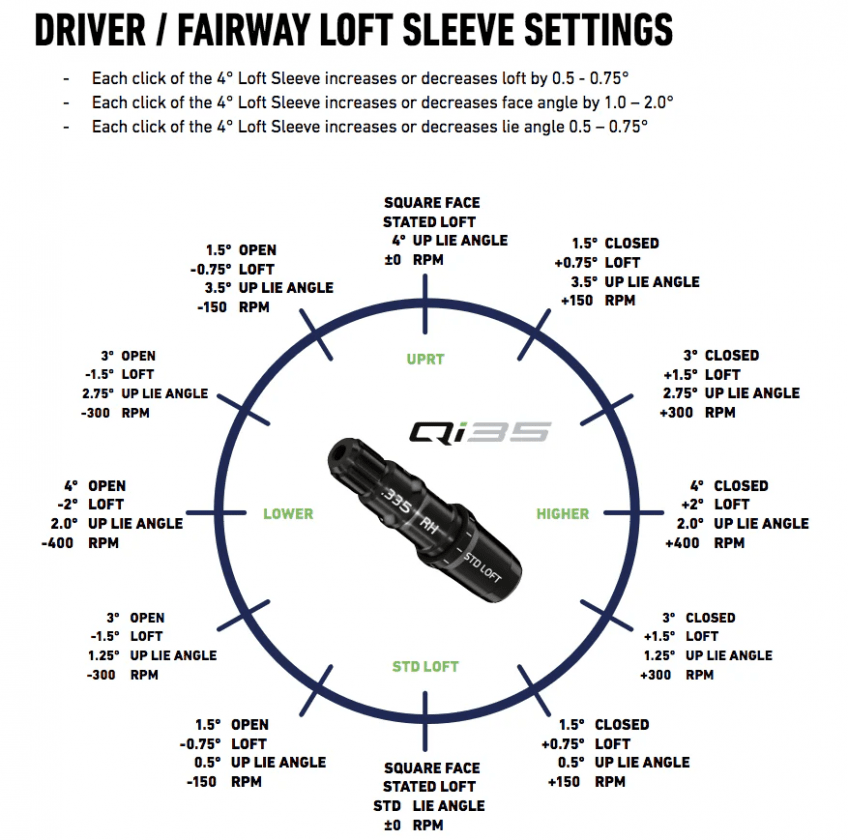

There are 12 different modes for the adapter, which you can see on the picture beside. For each position, the Loft changes 0.5 °–0.75 °, Lie 0.5 °–0.75 ° and Face Angle 1.0 °–2.0 °.



STANDARD - No adjustment.

LOWER - Lower Ball flight and less spin and 4° Open Face Angle (Fade, anti-draw)

UPRIGHT - More upright lie

HIGHER - Higher Ball flight and more spin and 4° Closed Face Angle (Draw, anti-fade)
